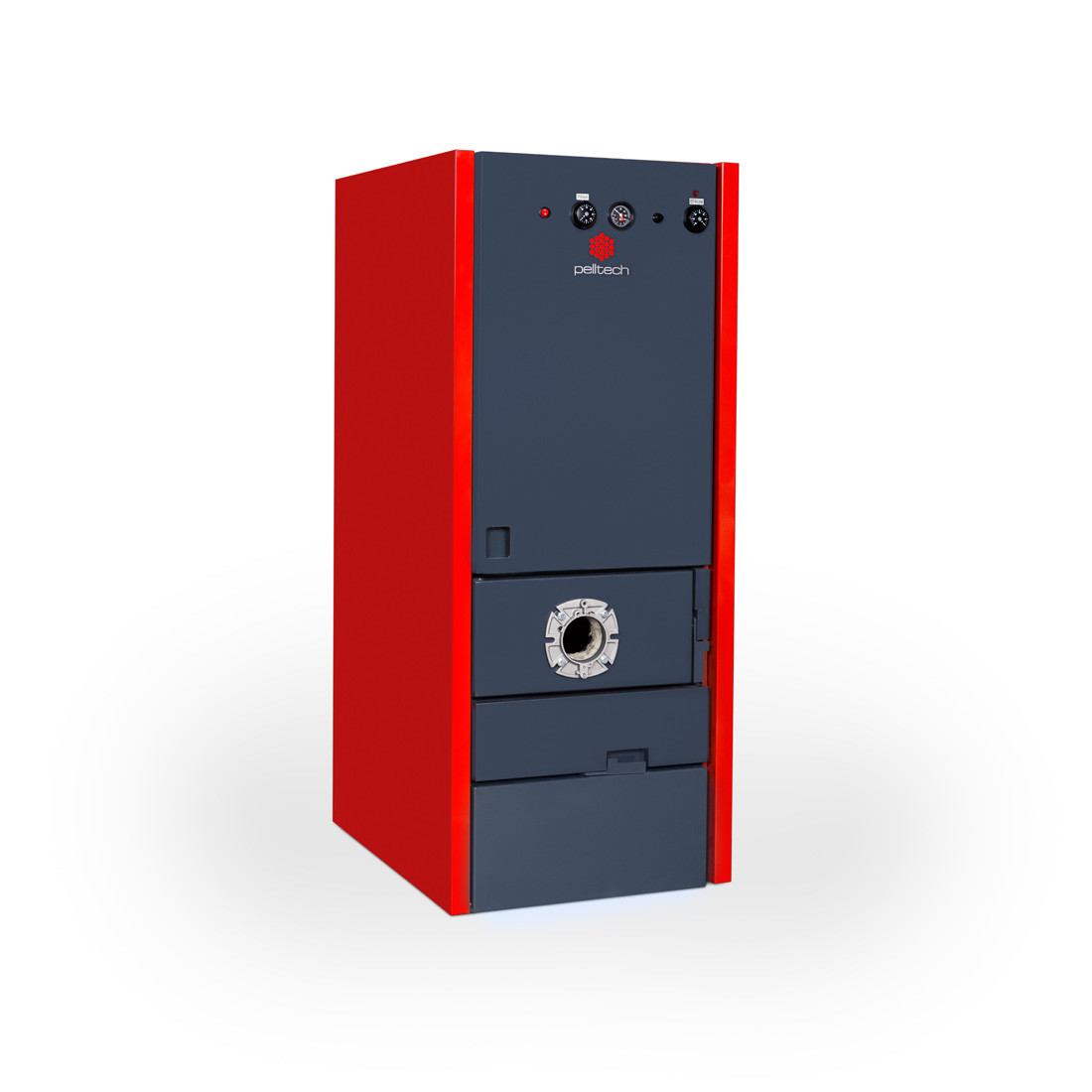

Everclean PK 30 pelletikatel
- Vertical 2-pass boiler with large water content
- Automatic heat exchanger cleaning with rotating turbulators
- Big built in ash container
- Integrated Smart house controller for burner, boiler and house control
- Boiler internet connection allows remote control, data logging and firmware updating
- Flue gas and water outlets can be directed either to the top or back
Pelltech boilers serve a highly effective and convenient solution for heating systems in single and semi-detached houses as well as smaller public buildings. Easy integration with Pelltech PV-series burners ensures efficient, environmental and cost effective pellet combustion. All Pelltech boilers are equipped with the new Smart House controller which can control up to two weather compensated hydronic circuit actuators and pumps. It is able to manage up to seven temperature sensors, an oxygen sensor, internet module and wireless sensors.
Base Features
Ash container
Big built in ash container (needs emptying approximately once a month)
Draught control
Integrated flue gas fan working by draught sensor
Safety thermostat
prevents water from exceeding 95 C. Once this occurs, the thermostat must be reset manually.
Fully automatic cleaning process
This boiler cleans itself, the only need is to empty the ash container once a month
Safety valve
is applied when pressure in the boiler reaches 2.5 bar
Safety door switch
prevents burner from starting up then door is open. If the door is opened during burining process, the switch triggers burner to stop. Burning process will automatically resume once the door is shut again.
PK30&50 brochure
Specification
Rated thermal output kW 28 Boiler class according to EN 303-5 5 Minimal returning water temp. °C 55 Recommended working temp. °C 75 Highest working temp. °C 90 Safety thermostat triggering temp. °C 95 Flue gas temperature at rated output °C 150...180 Permissible operative pressure bar 2.5 Test pressure bar 4 Boiler water volume l 125 Ash container volume l 38 Boiler weight kg 196 Boiler dimensions (L/W/H) mm 600/600/1510 Intake width without side panels mm 500 Combustion chamber volume (L/W/H) mm 330/400/700 Mains supply 230V, 50Hz Electrical consumption at ignition W 500 Electrical consumption during work W 50 Electrical consumption at standby W 3 Electrical heating element kW 6 Combustion air inlet hatch cm² ≥200 Burner's fixing flange mm 90 Chimney diameter mm ≥100 Distance between top connections mm 125 Flue gas outlet ⌀ mm 112 Boiler top connections pcs 2xG1" Number of turbulators pcs 4 Boiler back connections pcs 2xRp1" Required safety valve connections pcs 1xDN20 Efficiency at 70 °C % 94 Documentation
